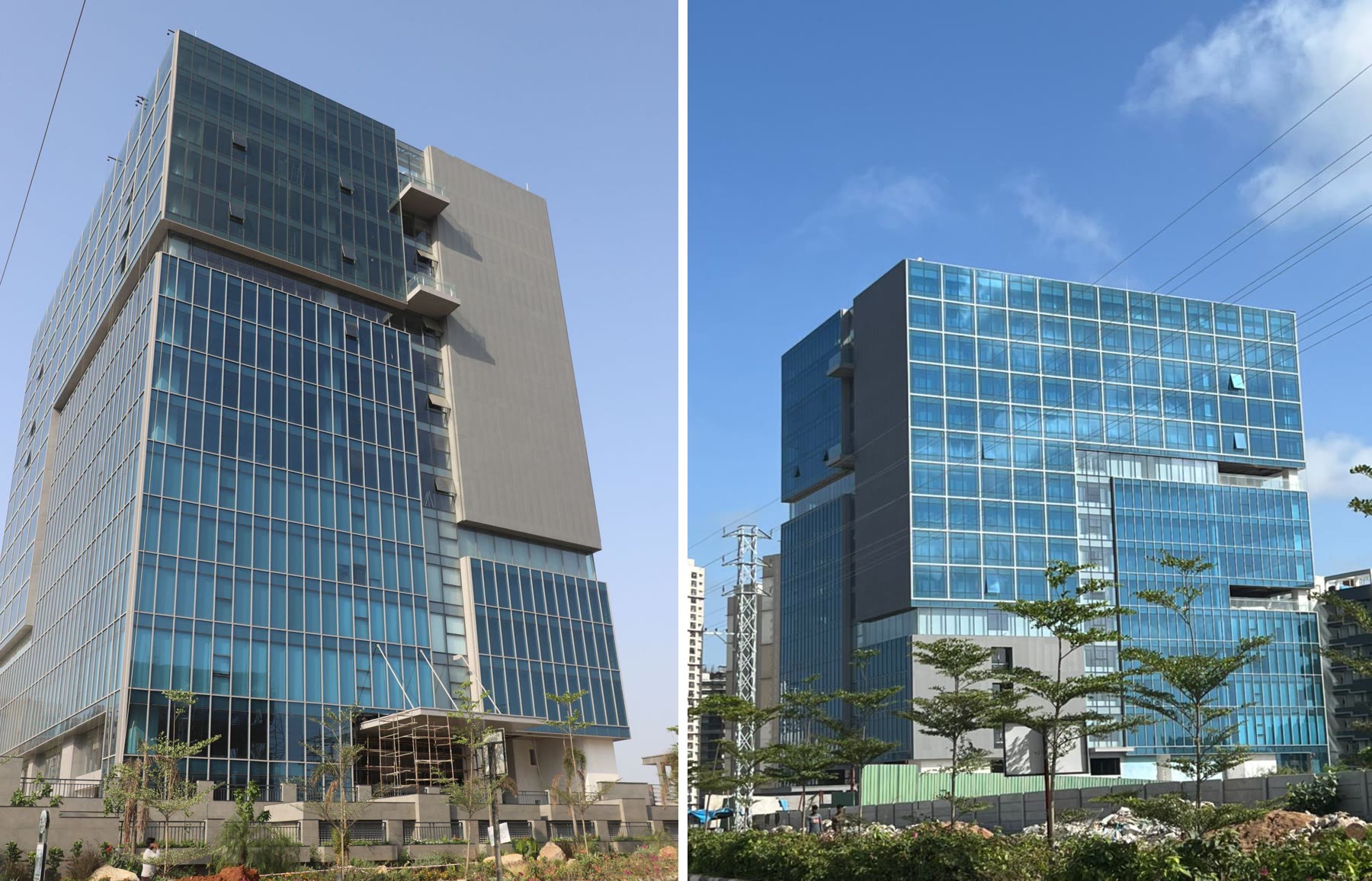

Invecas — facade by Sun Glazing
Financial District, Nanakramguda, Hyderabad · Aydiv Ventures LLP (occupier: Invecas)

Invecas

A semiconductor company's HQ — 10,850 Sqm of unitized glazing and a stepped elevation we engineered ourselves.

1,40,000 sq ftUnitized glazing2020 – 2022Commercial · ITCompleted
The project

In the Financial District, a semiconductor company's headquarters — designed by Vistaas Associates with Sriram Consultancy as PMC, and clad by Sun Glazing from top to bottom.

The envelope carries about 10,850 Sqm of unitized glazing, 6 km of aluminium fins in two profiles, 1,100 Sqm of zinc composite panels finished in natural patina, 430 Sqm of Nexion tile rainscreen and 1,800 Sqm of aluminium sheet cladding — including the entrance canopy and portal, with its integrated lighting and a hexagonal-grid feature — plus 110 operable vents and 60–100 MT of supporting steel.

The engineering set-piece is at the top: a double-height terrace built in unitized panels rising 7 metres above the last slab, on a step-in, step-out elevation developed entirely by Sun Glazing with over 150 tons of steel.

All of it was executed through the peak COVID lockdowns — with no escalations, absorbing all material and labour costs.

Project team
Client
Aydiv Ventures LLP (occupier: Invecas)
Architect
Vistaas Associates
Project management
Sriram Consultancy
Location
Financial District, Nanakramguda, Hyderabad
Sun Glazing scope
Complete envelope — ~10,850 Sqm unitized glazing, plus stick CW, spider glazing, Nexion and ZCP cladding, fins and railing
Gallery

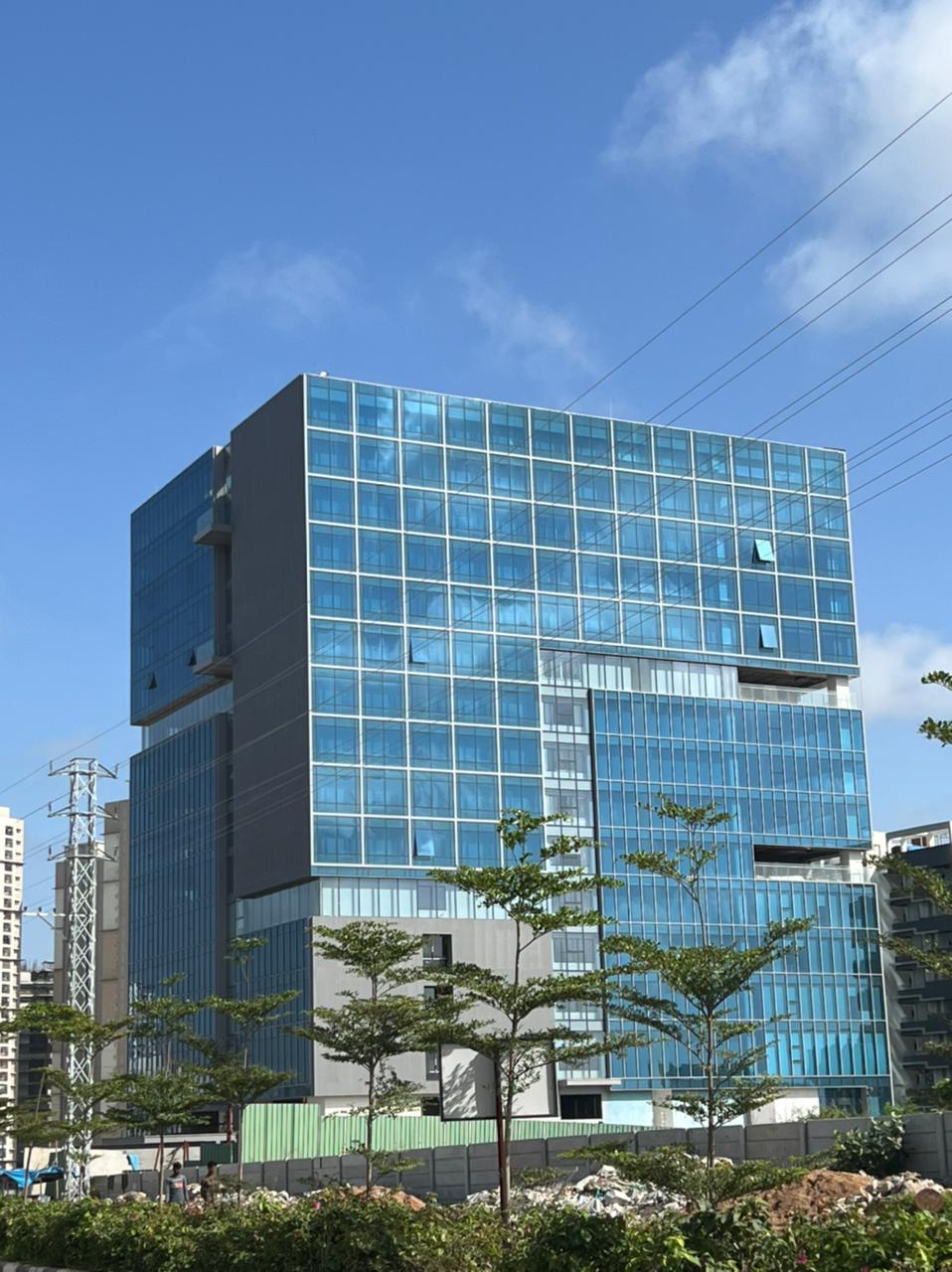

Invecas — Sun Glazing facade detail
